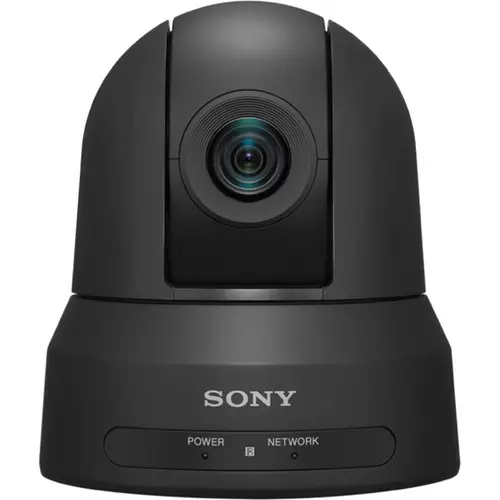

Sony SRG-X120 1080p PTZ Camera with HDMI, IP & 3G-SDI Output (Black, 4K Upgradable)
$2,125.00
- Up to 1920 x 1080 Resolution at 60 fps
- Optionally Upgradable to UHD 4K
- 1/2.5″ Exmor R CMOS Sensor
- 3G-SDI, HDMI & Ethernet Output
Available on backorder
Sony SRG-X120 1080p PTZ Camera with HDMI, IP & 3G-SDI Output (Black, 4K Upgradable) Overview
Capture every point of view in meetings and lectures with the black SRG-X1201080p PTZ Camera with HDMI, IP & 3G-SDI Output from Sony. Out of the box, this camera captures video at resolutions up to 1920 x 1080 at 60 fps. However, an optional license enables you to upgrade the camera for UHD 4K 3840 x 2160 performance. The camera is equipped with an 8.3MP CMOS sensor and a 4.4-52.8mm lens that delivers fields of view of up to 70°. Clear Image Zoom Technology can extend the 12x optical to up to 40x, allowing for frame-filling close-ups in Full HD.
The integrated pan/tilt system allows for 340° panning and 110° tilting at up to 300° and 126° per second respectively. Focusing can be performed manually or set to automatic. The camera outputs video via its HDMI, IP, and 3G-SDI interfaces. PoE+ technology simplifies setup by enabling you to power the camera directly via its network connection. An IR remote commander, mounting hardware, and an HDMI clamp are included in the package.
Color | Black |
---|---|
Zoom | 12x Optical |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Package Weight | 8.13 lb |
Box Dimensions (LxWxH) | 13.3 x 13 x 12.7" |
Flip / Mirror Support | Image Flip |
Max Digital Zoom Video | 40x ( in 1080p) |
Shutter Speed Video | 1/1 to 1/10,000 sec |
Optical Zoom | 20x |
Focal Length Video | 4.4 to 88mm |
Focus Control Video | Autofocus, Manual Focus |
Field of View Video | Horizontal: 70° |
Maximum Aperture Video | f/2 to 3.8 |
Minimum Focusing Distance Video | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
Embedded Audio | HDMI: 2-Channel, SDI: 2-Channel |
Output Formats Video | HDMI, RJ45: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps, SDI |
Recording Modes Video | Not Specified by Manufacturer |
Move Speed | Pan: 0.5 to 300°/sec, Tilt: 0.5 to 126°/sec |
Movement Range | Pan: 340° (-170 to 170°), Tilt: 110° (-20 to 90°) |
Presets | 100 via VISCA, 256 via IP |
Supported Control Protocols | IP, RS-422, VISCA |
Audio I/O | 2 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
Control Interface | 1 x RJ45 (RS-422, VISCA) Input, 1 x RJ45 (RS-422, VISCA) Output |
Video Output Connectors | 1 x BNC (3G-SDI) Female, 1 x HDMI Type A Female |
PoE Support | PoE+ 802.3at |
Power Connectors | 1 x JEITA (10.8 to 13.2 VDC) |
Power Consumption | 25.5 W |
Dimensions (W x H x D) | 7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm |
Tripod Mounting Thread | 1 x 1/4"-20 Female |
Weight |
